TeamCity Module

TeamCity is a user-friendly continuous integration (CI) server for developers and build engineers created by JetBrains. This module deploys a TeamCity server on AWS Elastic Container Service.

The TeamCity server relies on shared file system for persistent storage of configuration, build results, and current operation files as well as a SQL database to store build history, user data, build results, and runtime data. This module provides these services by provisioning an Amazon Elastic File System and an Amazon Amazon Aurora Serverless V2 cluster running the PostgreSQL engine.

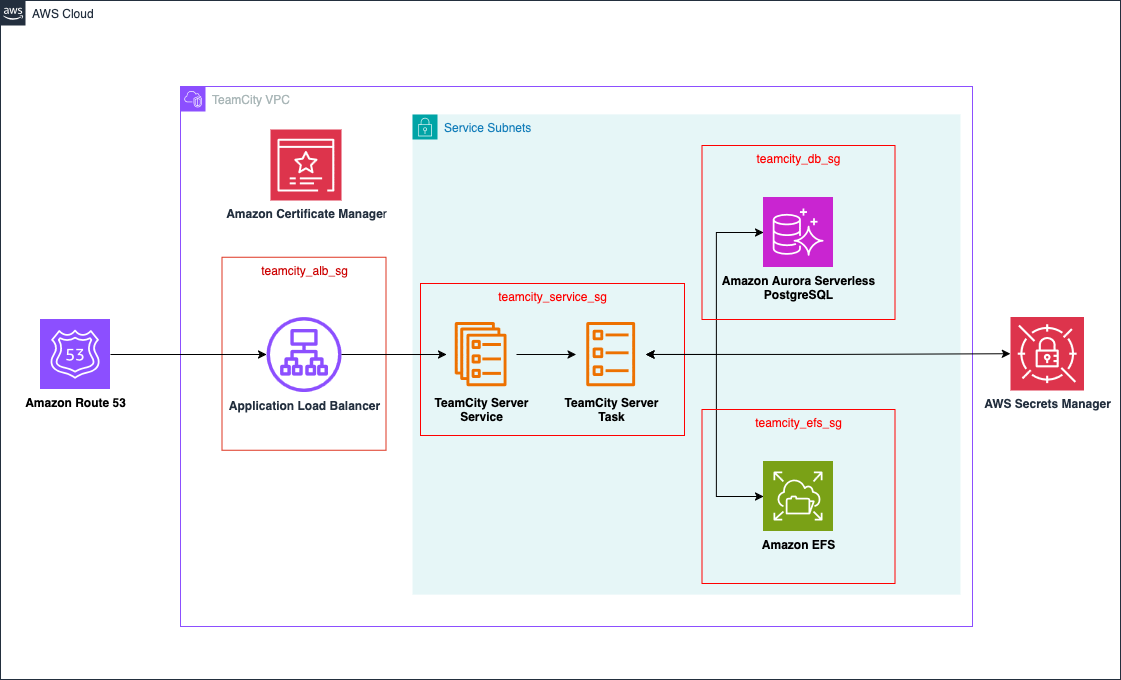

Deployment Architecture

Examples

For example configurations, please see the examples.

Requirements

Name	Version
terraform	>= 1.9
aws	5.89.0
random	3.5.1

Providers

Name	Version
aws	5.89.0
random	3.5.1

Modules

No modules.

Resources

Name	Type
aws_cloudwatch_log_group.teamcity_log_group	resource
aws_db_subnet_group.teamcity_db_subnet_group	resource
aws_ecs_cluster.teamcity_cluster	resource
aws_ecs_service.teamcity	resource
aws_ecs_task_definition.teamcity_task_definition	resource
aws_efs_access_point.teamcity_efs_data_access_point	resource
aws_efs_file_system.teamcity_efs_file_system	resource
aws_efs_mount_target.teamcity_efs_mount_target	resource
aws_iam_policy.teamcity_default_policy	resource
aws_iam_role.teamcity_default_role	resource
aws_iam_role.teamcity_task_execution_role	resource
aws_lb.teamcity_external_lb	resource
aws_lb_listener.teamcity_listener	resource
aws_lb_target_group.teamcity_target_group	resource
aws_rds_cluster.teamcity_db_cluster	resource
aws_rds_cluster_instance.teamcity_db_cluster_instance	resource
aws_s3_bucket.teamcity_alb_access_logs_bucket	resource
aws_s3_bucket_lifecycle_configuration.access_logs_bucket_lifecycle_configuration	resource
aws_s3_bucket_policy.alb_access_logs_bucket_policy	resource
aws_s3_bucket_public_access_block.access_logs_bucket_public_block	resource
aws_security_group.teamcity_alb_sg	resource
aws_security_group.teamcity_db_sg	resource
aws_security_group.teamcity_efs_sg	resource
aws_security_group.teamcity_service_sg	resource
aws_vpc_security_group_egress_rule.alb_outbound_service	resource
aws_vpc_security_group_egress_rule.service_outbound_internet	resource
aws_vpc_security_group_ingress_rule.service_db	resource
aws_vpc_security_group_ingress_rule.service_efs	resource
aws_vpc_security_group_ingress_rule.service_inbound_alb	resource
random_string.teamcity_alb_access_logs_bucket_suffix	resource
aws_ecs_cluster.teamcity_cluster	data source
aws_efs_file_system.efs_file_system	data source
aws_elb_service_account.main	data source
aws_iam_policy_document.access_logs_bucket_alb_write	data source
aws_iam_policy_document.ecs_tasks_trust_relationship	data source
aws_iam_policy_document.teamcity_default_policy	data source
aws_region.current	data source

Inputs

Name	Description	Type	Default	Required
alb_certificate_arn	The ARN of the SSL certificate to use for the ALB	string	null	no
alb_subnets	The subnets in which the ALB will be deployed	list(string)	[]	no
aurora_instance_count	Number of instances to provision for the Aurora cluster	number	2	no
aurora_skip_final_snapshot	Flag for whether a final snapshot should be created when the cluster is destroyed.	bool	true	no
cluster_name	The name of the ECS cluster to deploy TeamCity to.	string	null	no
container_cpu	The number of CPU units to allocate to the TeamCity server container	number	1024	no
container_memory	The number of MB of memory to allocate to the TeamCity server container	number	4096	no
container_name	The name of the TeamCity server container	string	"teamcity"	no
container_port	The port on which the TeamCity server container listens	number	8111	no
create_external_alb	Set this flag to true to create an external load balancer for TeamCity.	bool	true	no
database_connection_string	The database connection string for TeamCity	string	null	no
database_master_password	The master password for the database	string	null	no
database_master_username	The master username for the database	string	null	no
debug	Set this flag to enable ECS execute permissions on the TeamCity server container and force new service deployments on Terraform apply.	bool	false	no
desired_container_count	The desired number of containers running TeamCity server.	number	1	no
efs_access_point_id	The ID of the EFS access point to use for the TeamCity data volume.	string	null	no
efs_encryption_enabled	Set this flag to true to enable EFS encryption.	bool	true	no
efs_id	The ID of the EFS file system to use for the TeamCity service.	string	null	no
enable_teamcity_alb_access_logs	Enables access logging for the TeamCity ALB. Defaults to true.	bool	true	no
enable_teamcity_alb_deletion_protection	Enables deletion protection for the TeamCity ALB. Defaults to true.	bool	false	no
environment	The current environment (e.g. dev, prod, etc.)	string	"dev"	no
name	The name applied to resources in the TeamCity module	string	"teamcity"	no
service_subnets	The subnets in which the TeamCity server service will be deployed	list(string)	n/a	yes
tags	Tags to apply to resources.	map(any)	{ "iac-management": "CGD-Toolkit", "iac-module": "TeamCity", "iac-provider": "Terraform" }	no
teamcity_alb_access_logs_bucket	ID of the S3 bucket for TeamCity ALB access log storage. If access logging is enabled and this is null the module creates a bucket.	string	null	no
teamcity_alb_access_logs_prefix	Log prefix for TeamCity ALB access logs. If null the project prefix and module name are used.	string	null	no
teamcity_cloudwatch_log_retention_in_days	The log retention in days of the cloudwatch log group for TeamCity.	string	365	no
teamcity_efs_performance_mode	The performance mode of the EFS file system used by the TeamCity service. Defaults to general purpose.	string	"generalPurpose"	no
teamcity_efs_throughput_mode	The throughput mode of the EFS file system used by the TeamCity service. Defaults to bursting.	string	"bursting"	no
vpc_id	The ID of the VPC in which the service will be deployed	string	n/a	yes

Outputs

Name	Description
external_alb_dns_name	DNS endpoint of Application Load Balancer (ALB)
external_alb_zone_id	Zone ID for internet facing load balancer
