P4 Code Review Submodule

P4 Code Review is a free code review tool for projects hosted in P4 Server. This module deploys P4 Code Review as a service on AWS Elastic Container Service using the publicly available image from Dockerhub.

P4 Code Review also relies on a Redis cache. The module provisions a single node AWS Elasticache Redis OSS cluster and configures connectivity for the P4 Code Review service.

This module deploys the following resources:

  • An Elastic Container Service (ECS) cluster backed by AWS Fargate. This can also be created externally and passed in via the cluster_name variable.
  • An ECS service running the latest P4 Code Review container (perforce/helix-swarm) available.
  • An Application Load Balancer for TLS termination of the P4 Code Review service.
  • A single node AWS Elasticache Redis OSS cluster.
  • Supporting resources such as Cloudwatch log groups, IAM roles, and security groups.

Architecture

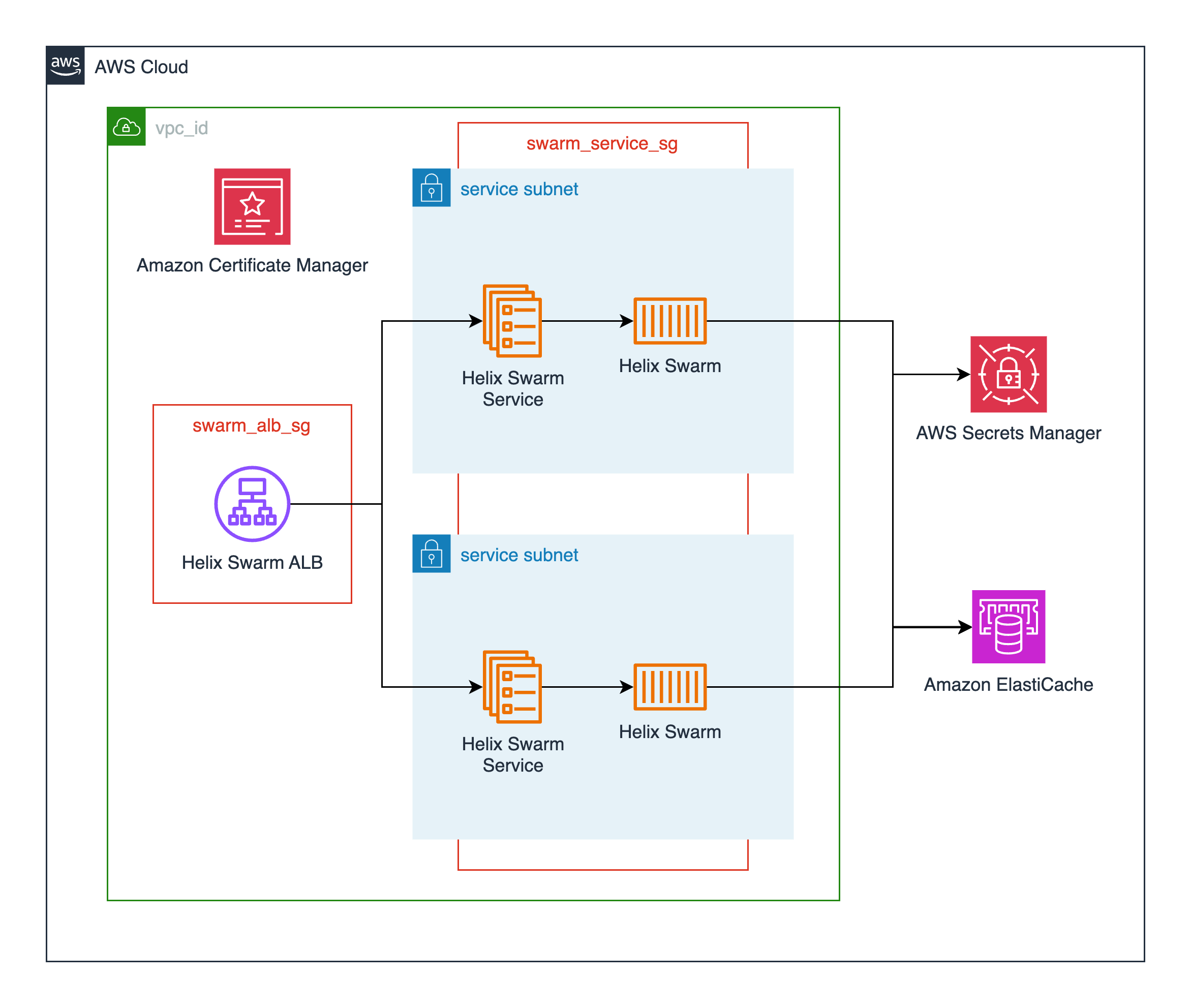

P4 Code Review Submodule Architecture

Prerequisites

P4 Code Review needs to be able to connect to a P4 Server. P4 Code Review leverages the same authentication mechanism as P4 Server, and needs to install required plugins on the upstream P4 Server instance during setup. This happens automatically, but P4 Code Review requires an administrative user's credentials to be able to initially connect. These credentials are provided to the module through variables specifying AWS Secrets Manager secrets, and then pulled into the P4 Code Review container during startup. See the p4d_super_user_arn, p4d_super_user_password_arn, p4d_swarm_user_arn, and p4d_swarm_password_arn variables below for more details.

The P4 Server submodule creates an administrative user on initial deployment, and stores the credentials in AWS Secrets manager. The ARN of the credentials secret is then made available as a Terraform output from the module, and can be referenced elsewhere. The is done by default by the parent Perforce module.

Should you need to manually create the administrative user secret the following AWS CLI command may prove useful:

aws secretsmanager create-secret \
    --name P4CodeReviewSuperUser \
    --description "P4 Code Review Super User" \
    --secret-string "{\"username\":\"swarm\",\"password\":\"EXAMPLE-PASSWORD\"}"

You can then provide these credentials as variables when you define the P4 Code Review module in your Terraform configurations (the parent Perforce module does this for you):

module "p4_code_review" {
    source = "modules/perforce/modules/p4-code-review"
    ...
    p4d_super_user_arn = "arn:aws:secretsmanager:<your-aws-region>:<your-aws-account-id>:secret:P4CodeReviewSuperUser-a1b2c3:username::"
    p4d_super_user_password_arn = "arn:aws:secretsmanager:<your-aws-region>:<your-aws-account-id>:secret:P4CodeReviewSuperUser-a1b2c3:password::"
}

Requirements

Name Version
terraform >= 1.0
aws 5.97.0
random 3.7.1

Providers

Name Version
aws 5.97.0
random 3.7.1

Modules

No modules.

Resources

Name Type
aws_cloudwatch_log_group.log_group resource
aws_cloudwatch_log_group.redis_service_log_group resource
aws_ecs_cluster.cluster resource
aws_ecs_cluster_capacity_providers.cluster_fargate_providers resource
aws_ecs_service.service resource
aws_ecs_task_definition.task_definition resource
aws_elasticache_cluster.cluster resource
aws_elasticache_subnet_group.subnet_group resource
aws_iam_policy.default_policy resource
aws_iam_policy.secrets_manager_policy resource
aws_iam_role.default_role resource
aws_iam_role.task_execution_role resource
aws_iam_role_policy_attachment.default_role resource
aws_iam_role_policy_attachment.p4_auth_task_execution_role_ecs resource
aws_iam_role_policy_attachment.p4_auth_task_execution_role_secrets_manager resource
aws_lb.alb resource
aws_lb_listener.alb_https_listener resource
aws_lb_target_group.alb_target_group resource
aws_s3_bucket.alb_access_logs_bucket resource
aws_s3_bucket_lifecycle_configuration.access_logs_bucket_lifecycle_configuration resource
aws_s3_bucket_policy.alb_access_logs_bucket_policy resource
aws_s3_bucket_public_access_block.access_logs_bucket_public_block resource
aws_security_group.alb resource
aws_security_group.ecs_service resource
aws_security_group.elasticache resource
aws_vpc_security_group_egress_rule.alb_outbound_to_ecs_service resource
aws_vpc_security_group_egress_rule.ecs_service_outbound_to_internet_ipv4 resource
aws_vpc_security_group_egress_rule.ecs_service_outbound_to_internet_ipv6 resource
aws_vpc_security_group_ingress_rule.ecs_service_inbound_alb resource
aws_vpc_security_group_ingress_rule.elasticache_inbound_from_ecs_service resource
random_string.alb_access_logs_bucket_suffix resource
random_string.p4_code_review resource
aws_ecs_cluster.cluster data source
aws_elb_service_account.main data source
aws_iam_policy_document.access_logs_bucket_alb_write data source
aws_iam_policy_document.default_policy data source
aws_iam_policy_document.ecs_tasks_trust_relationship data source
aws_iam_policy_document.secrets_manager_policy data source
aws_region.current data source

Inputs

Name Description Type Default Required
alb_access_logs_bucket ID of the S3 bucket for P4 Code Review ALB access log storage. If access logging is enabled and this is null the module creates a bucket. string null no
alb_access_logs_prefix Log prefix for P4 Code Review ALB access logs. If null the project prefix and module name are used. string null no
alb_subnets A list of subnets to deploy the load balancer into. Public subnets are recommended. list(string) [] no
application_load_balancer_name The name of the P4 Code Review ALB. Defaults to the project prefix and module name. string null no
certificate_arn The TLS certificate ARN for the P4 Code Review service load balancer. string null no
cloudwatch_log_retention_in_days The log retention in days of the cloudwatch log group for P4 Code Review. string 365 no
cluster_name The name of the cluster to deploy the P4 Code Review service into. Defaults to null and a cluster will be created. string null no
container_cpu The CPU allotment for the P4 Code Review container. number 1024 no
container_memory The memory allotment for the P4 Code Review container. number 2048 no
container_name The name of the P4 Code Review container. string "p4-code-review-container" no
container_port The container port that P4 Code Review runs on. number 80 no
create_application_load_balancer This flag controls the creation of an application load balancer as part of the module. bool true no
create_default_role Optional creation of P4 Code Review Default IAM Role. Default is set to true. bool true no
custom_role ARN of the custom IAM Role you wish to use with P4 Code Review. string null no
debug Debug flag to enable execute command on service for container access. bool false no
deregistration_delay The amount of time to wait for in-flight requests to complete while deregistering a target. The range is 0-3600 seconds. number 30 no
elasticache_node_count Number of cache nodes to provision in the Elasticache cluster. number 1 no
elasticache_node_type The type of nodes provisioned in the Elasticache cluster. string "cache.t4g.micro" no
enable_alb_access_logs Enables access logging for the P4 Code Review ALB. Defaults to false. bool false no
enable_alb_deletion_protection Enables deletion protection for the P4 Code Review ALB. Defaults to true. bool false no
enable_sso Set this to true if using SSO for P4 Code Review authentication. bool false no
existing_redis_connection The connection specifications to use for an existing Redis deployment.
object({
    host = string
    port = number
  })
 null no
existing_security_groups A list of existing security group IDs to attach to the P4 Code Review load balancer. list(string) [] no
fully_qualified_domain_name The fully qualified domain name that P4 Code Review should use for internal URLs. string null no
internal Set this flag to true if you do not want the P4 Code Review service load balancer to have a public IP. bool false no
name The name attached to P4 Code Review module resources. string "p4-code-review" no
p4_code_review_user_password_secret_arn Optionally provide the ARN of an AWS Secret for the p4d P4 Code Review password. string n/a yes
p4_code_review_user_username_secret_arn Optionally provide the ARN of an AWS Secret for the p4d P4 Code Review username. string n/a yes
p4d_port The P4D_PORT environment variable where P4 Code Review should look for P4 Code Review. Defaults to 'ssl:perforce:1666' string "ssl:perforce:1666" no
project_prefix The project prefix for this workload. This is appended to the beginning of most resource names. string "cgd" no
s3_enable_force_destroy Enables force destroy for the S3 bucket for P4 Code Review access log storage. Defaults to true. bool true no
subnets A list of subnets to deploy the P4 Code Review ECS Service into. Private subnets are recommended. list(string) n/a yes
super_user_password_secret_arn Optionally provide the ARN of an AWS Secret for the p4d super user password. string n/a yes
super_user_username_secret_arn Optionally provide the ARN of an AWS Secret for the p4d super user username. string n/a yes
tags Tags to apply to resources. map(any)
{
  "IaC": "Terraform",
  "ModuleBy": "CGD-Toolkit",
  "ModuleName": "p4-code-review",
  "ModuleSource": "https://github.com/aws-games/cloud-game-development-toolkit/tree/main/modules/perforce/terraform-aws-perforce",
  "RootModuleName": "terraform-aws-perforce"
}
 no
vpc_id The ID of the existing VPC you would like to deploy P4 Code Review into. string n/a yes

Outputs

Name Description
alb_dns_name The DNS name of the P4 Code Review ALB
alb_security_group_id Security group associated with the P4 Code Review load balancer
alb_zone_id The hosted zone ID of the P4 Code Review ALB
cluster_name Name of the ECS cluster hosting P4 Code Review
service_security_group_id Security group associated with the ECS service running P4 Code Review
target_group_arn The service target group for P4 Code Review
